TrendViewer - Process data analysis

Description

For the first time process data can be stored with a high frequency and evaluated offline, providing for the user detailed and complete information about the whole production run. Different machines, machine and tool settings, tool and material supplier can be compared and effectively evaluated and conclusions can be made to optimize production, increase productivity and reduce scrap production.

The XBrowser is a server based software tool for the transmission, visualization and storage of time, stroke or process faults event for Brankamp X units. In the TrendViewer software those stored process data files can be reloaded, displayed, filtered and evaluated with different methods and time intervals. Fast analyze of long production runs is easily possible, finding of failure curves, process variations or modification of monitoring limits can be done with a few clicks. The superimposition functions of curve data allows detailed view into selectable parts of the process behavior and conclusions about the production process can drawn about process stability and even tool wear.

Process Quality

• stored long term process quality
• easy search for process variation
• complete process quality documentation

Vario Trend

• detailed trend information
• related to a free selectable curve area
• detailed tool wear analysis

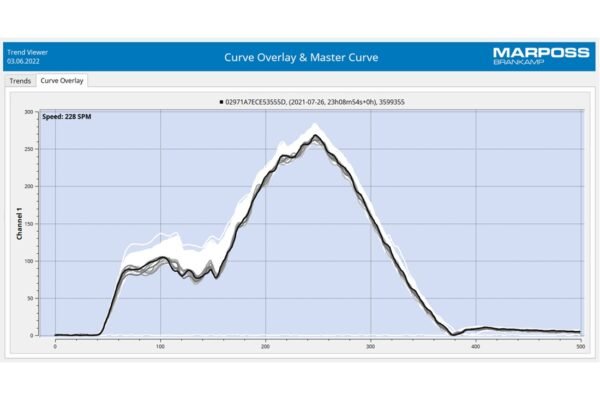

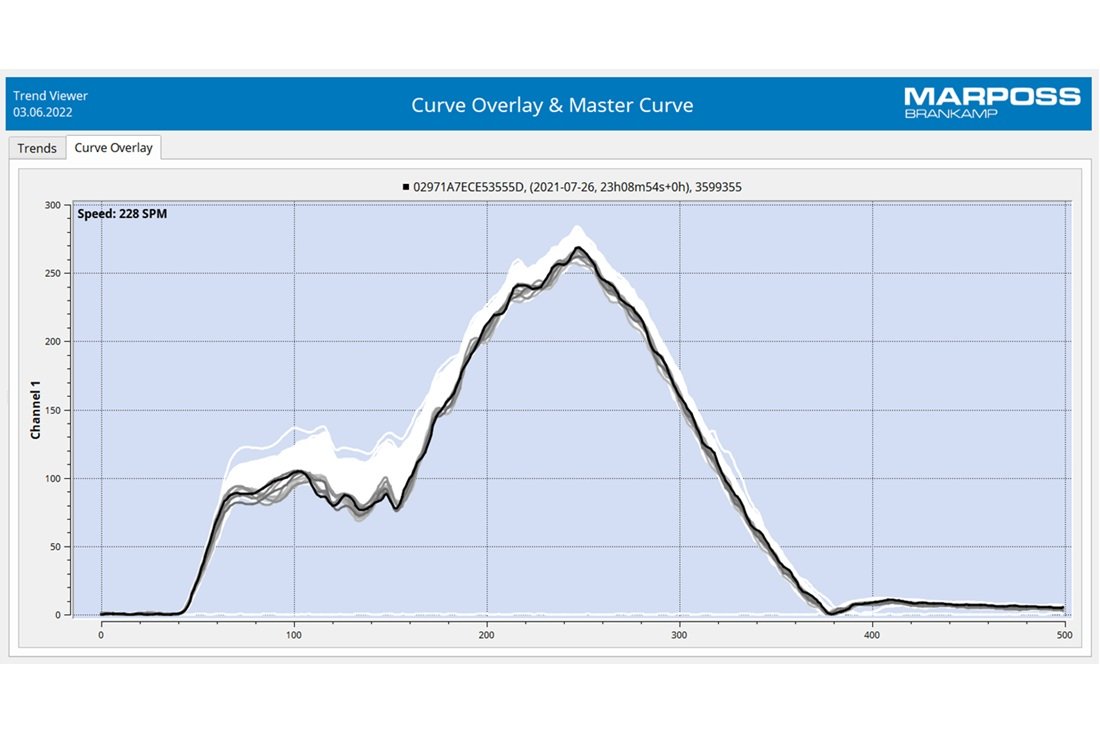

Master Curve

• Master curve over all selected “production” curves
• Reference curve for machine and tool setup
