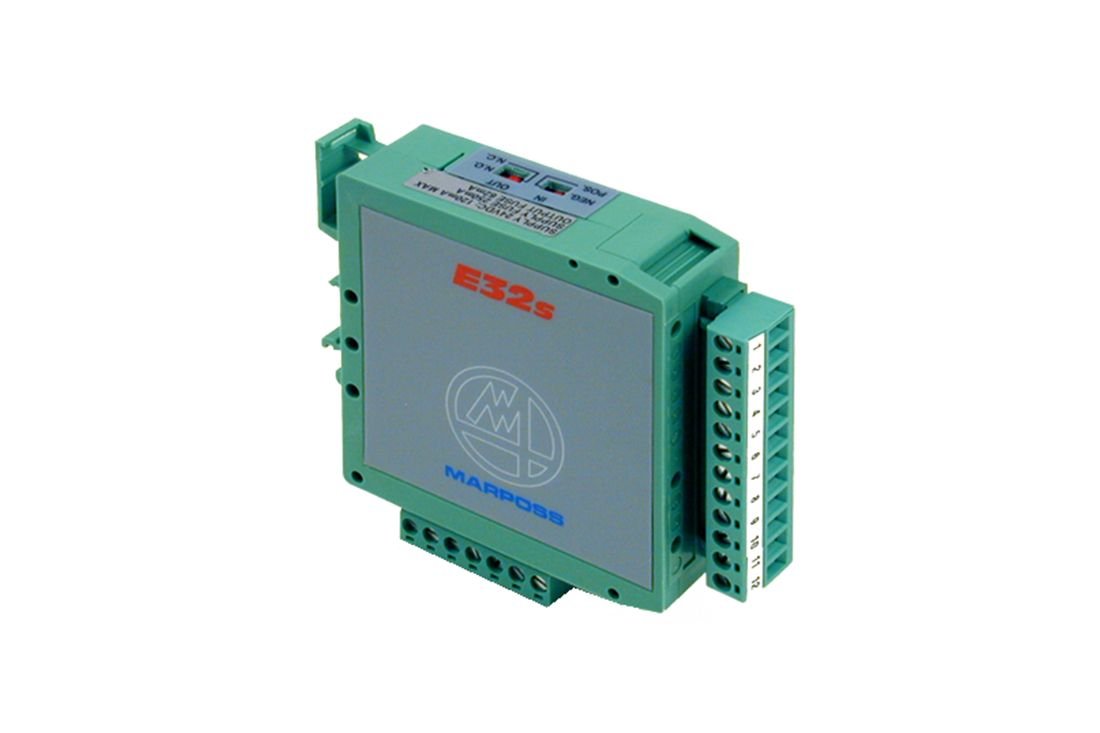

Scanning Probe Interface Unit for High Frequency and Hard-Wired Transmission SystemsDetails E32S

Description

The E32S manages work piece and tool monitoring probes.
It is possible to select between the two probes either manually, by using the switch mounted on the unit, or automatically, by means of a CNC command (Code M) In order to satisfy every possible operating requirement, the following connection configurations are possible, depending on the type of transmission required by the application:

• one HF transmission probe and one hard-wired probe
• two HF transmission probes
• two hard-wire probes
