Description

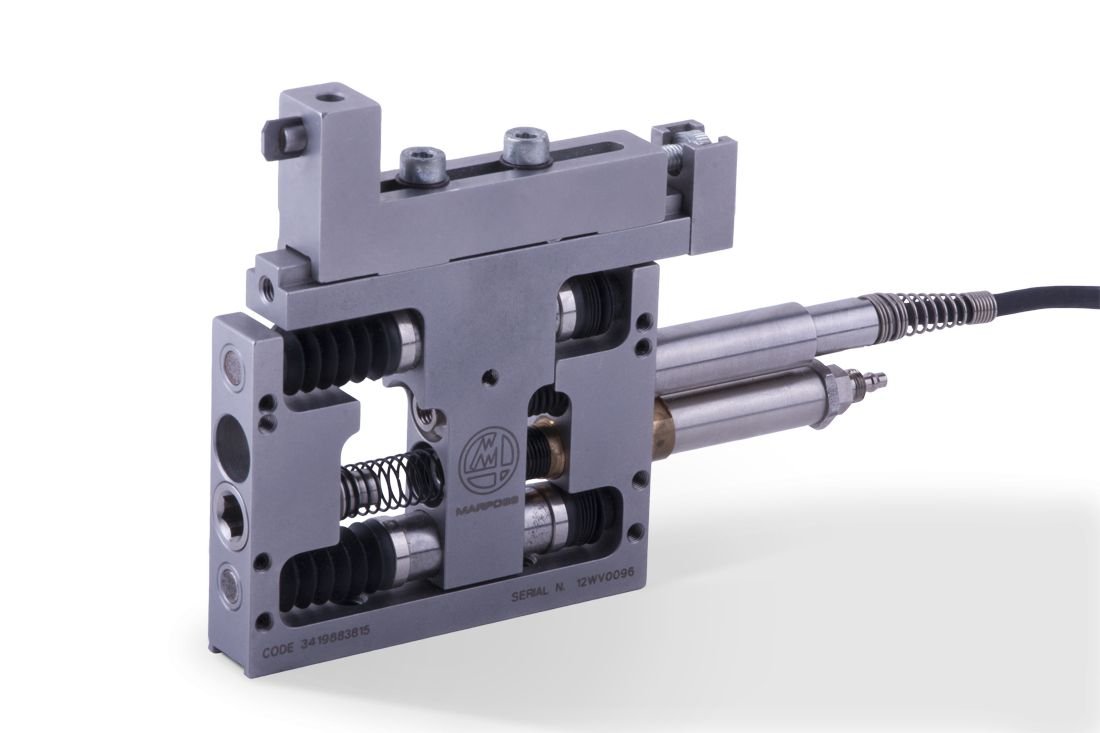

Quick Block is a compact, universal measurement unit. It is available with a built-in measuring transducer or as a mechanical transmission to be used with measuring probes.
It features a ball cage anti rotation system that guarantees a repeatability range value (max-min) of less than 0.5 μm with direct contact. The ±5 mm version can be supplied with an axial or radial cable outlet for the transducer and pneumatic cylinder.
It can be installed with the measurement axis positioned in any spatial direction and the contact support has a retooling range of 20 mm.
The pneumatic actuation version is particularly suited for post-process applications on measuring stations with automatic loading/unloading.
It can also be fitted on Quick Set stations with the relative interface to measure diameters up to 90 mm.
A wide range of spring, measuring arms and contacts is available to reach any measuring position whilst maintain the arm ratio unchanged.
A special version with dovetail guide, compatible with TESA supports and contacts, is also available.
The new QuickBlock Smart, digitalises and linearises the measurement signal. It integrates a LED and Ø8mm feedthrough connector to simplify the application layout ensuring a quick connection to the SmartNet modular network.
