Description
Single station N2 leak test for PEMFC SAM (Stack Assembly Module), Single Stack and Two Single Stacks, with manual loading/unloading.
Principle of measurement: nitrogen mass flow measurement, by way of Tecna TM3PF measuring devices.

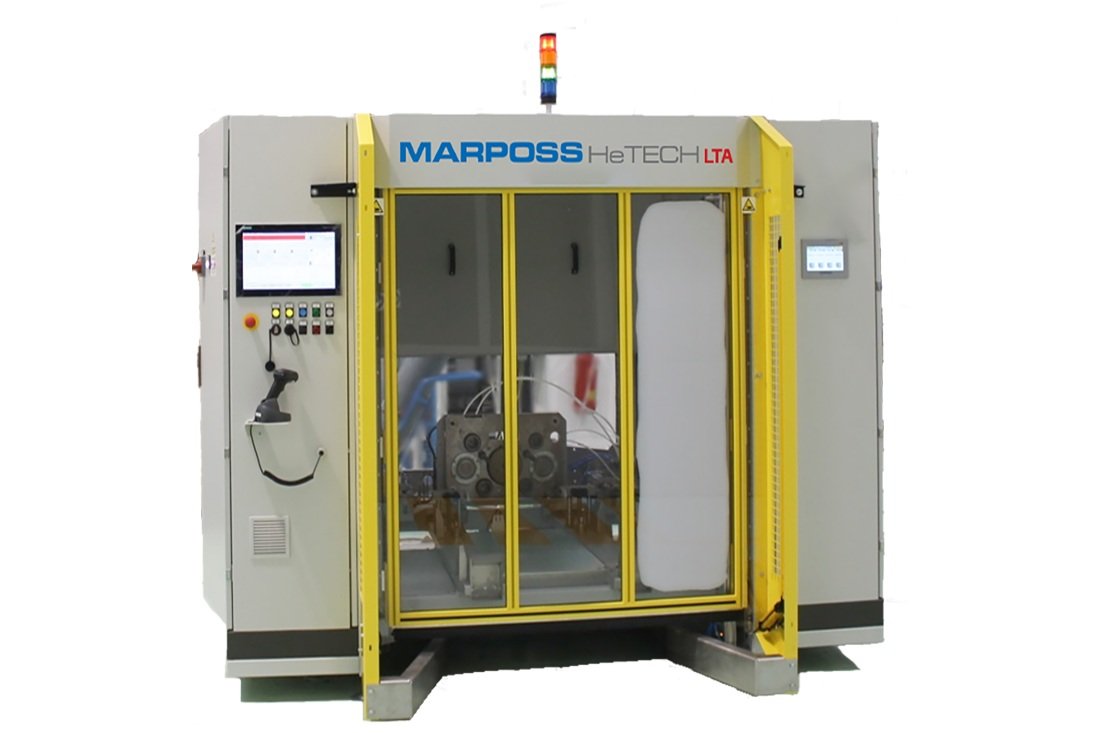

The bench provides a single station, assembled on a welded painted steel frame with cover panels and automatic door. The cabinet containing the electric switchboard is on the left-hand side of the bench, while the process components, including the measuring devices, are located on the right-hand side. The access to the stations is protected by safety light curtains. Only electrical supply, air and nitrogen supply are needed to run the machine.
Four different measuring devices – with a unique touch screen display at sight, so that it is possible to look into the values of pressure/flow rate of the test phase – are installed in the bench: No. 3 devices allow for the measurement of the leakage flow of the three circuits towards the environment simultaneously as well as the internal leakages of one circuit towards the other one (and viceversa); a fourth measuring device monitors the cumulative leakage of the stack towards the environment.
The fixture is automatically actuated and allows the coupling between the bench and the interface of the stack under test, by way of a multi-coupling plate.
The bench incorporates an industrial PC which performs HMI functions while supervision of the process is made by a PLC. The software is configurable so that it is possible to:
- Set machine parameters
- Create different recipes, according to required test parameters
- Manage the automatic cycle as well as the manual cycle
- Set counters and production data
- Manage levels of access
The bench is also provided with a dedicated master OK/NOK, which integrates different calibrated leaks, so that it is possible to guarantee the accuracy of the measurement performed by the machine.
The master cycle can be done at the starting of the machine, at the beginning of each shift or whenever it should be better to carry out this calibration procedure.
