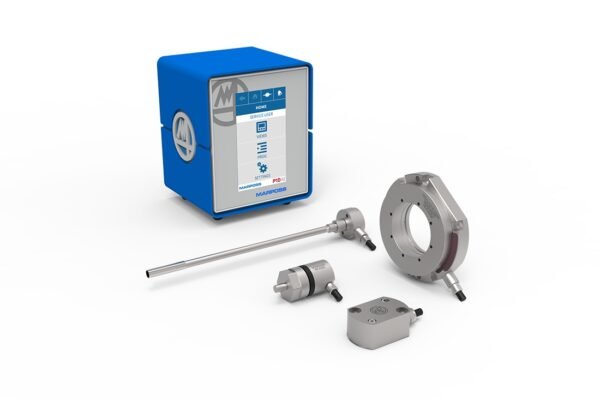

P1D AE - Entry level acoustic monitoring system for grinding machines

Description

The P1dAE system is able to satisfy various requirements such as the continuous control of the grinding and dressing processes and it can minimise the damages in case of collision in the work area.  Up to two acoustic sensors, managed contemporaneously can be connected and there are four logic channels available to analyse the signal.   The level of the signal received is checked and it can be read on the graphic display with 4.3″ touch screen, compatible with hostile environments, typical of mechanical machining.

P1dAE works at a frequency interval between 4 KHz and 1000 KHz, the auto setup function is used to select the most suitable band width.  P1dAE is an autonomous system available in the rack version, for machine cabinet or remote panel.

A SW tool is supplied, for data backup and to restore operations and to facilitate SW updating. The SW tool can also act as the Human Interface if the system is to be used via a personal computer rather than the panel.
