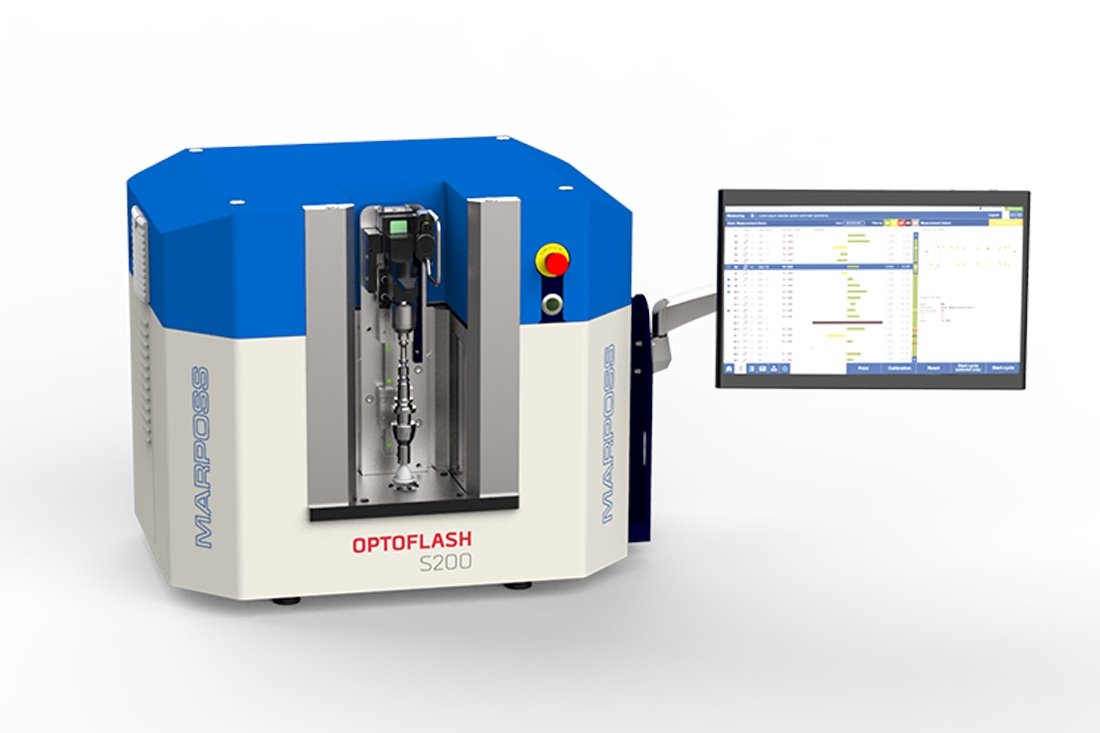

OPTOFLASH™ - 2D Optical Gauging Solution With 3D Reconstruction

Description

Optoflash is the latest Marposs addition to its optical measuring systems. Designed for small-size shafts, fasteners, dental implants, and aerospace parts. Optoflash is the perfect optical measuring device for accurate quality control in the laboratory as well as in the production environment.

Optoflash is the world’s-first optical measuring device – with axial range up to 300 mm – based on multiple 2D sensors in a fixed position. This means that images that are acquired by different sensors are perfectly combined together in order to generate one single resultant image of the part. This gives zero discontinuities and no gaps at the stitching edges. Optoflash is now able to reconstruct the 3D shape of the part.

With the absence of Z-axis movements, OptoFlash S is extremely fast and guarantees consistent and stable measurement performance over millions of cycles. The measurement cycle time is impressively fast and it can perform 100 static measurements in just 2 seconds – not depending on how the measurement sections are distributed along the shaft length!

Thanks to its new and overhauled graphical user interface, anyone can use and also configure new measurements on the OptoFlash. Features smart results visuals, part detail images and graphic setups allow operator to quickly validate parts in production and also to detect the causes of non-compliances.
