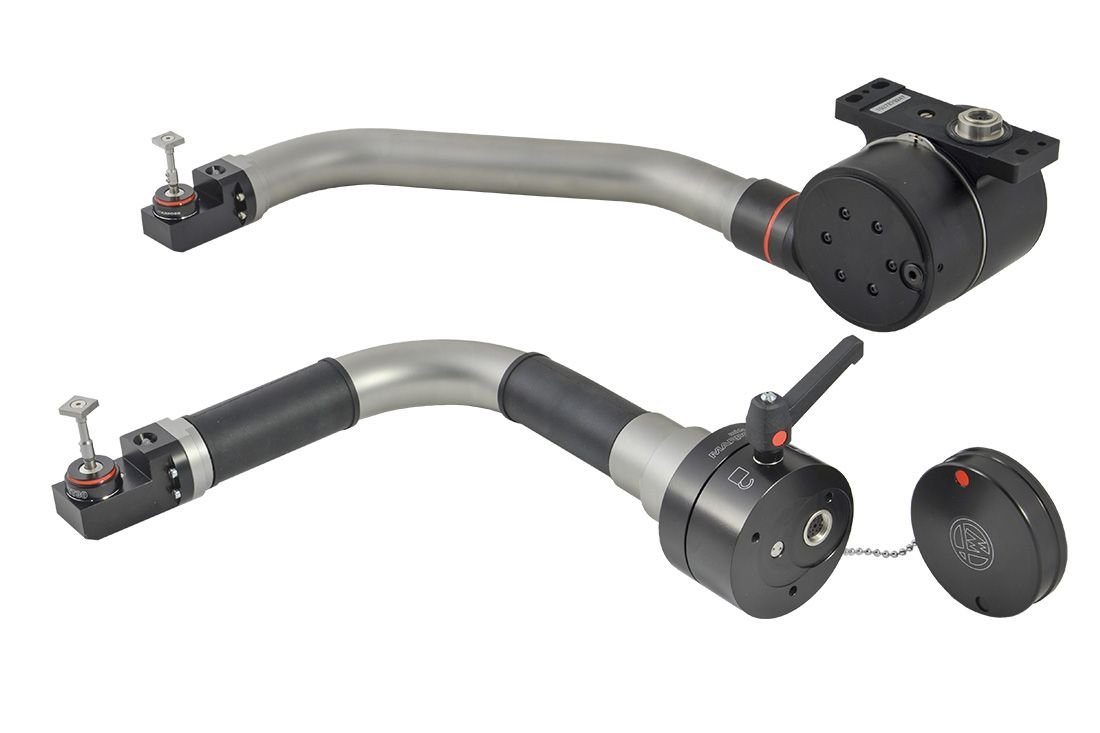

MIDA™ ARMS - Arms for Contact Tool Setter

Description

With the Mida Arm system it is possible to perform rapid inspections on tools for signs or wear or breakages, an essential aspect of unmonitored automatic machining processes.

Thanks to is flexible, modular design, the system can be adapted easily for use on any type of lathe, irrespective of the type of tools and spindles in use.

Mida Arm may be installed in either removable or fixed mode, in order to adapt to the machine configuration and automation level.

Midi Arm is used with standard tool setting inputs on CNC commands, via the E32A electronic interface unit. The interface is used to manage the touch probe and supply power to it.

The LED mounted on the probe indicates when the tool comes into contact with the probe contact, as well as providing information about the current state of the probe.
