Description

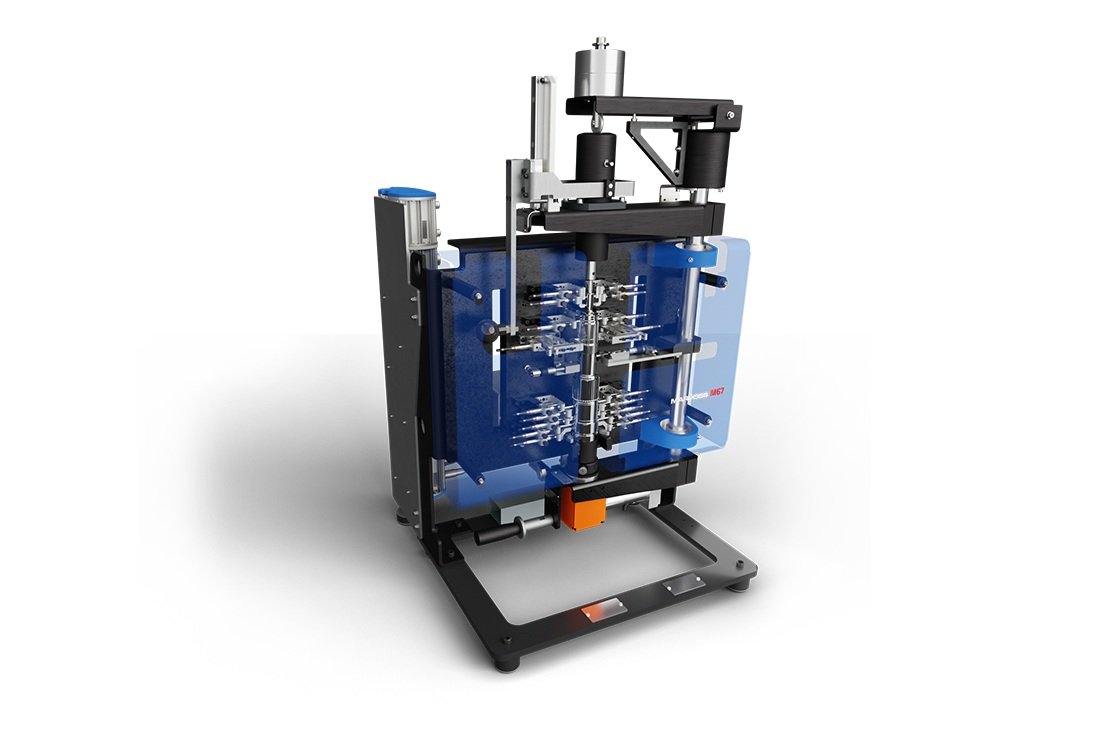

M67 is a vertical gauging bench for shaft inspection on the shop floor. Its strengths are simplicity, efficient in design, compact, and robust.
The gauging system performs geometrical and dimensional checks of:
- outside diameters
- straightness and Barrel Shape of Main Bearings
- ovality
- taper
- concentricity
- TIR
- distances
- perpendicularity of Shoulders
The M67 can be supplied as single or double station for final or inter-operational controls.
The workpiece is manually loaded in the vertical position and placed between centers that are either fixed or motorized so it can perform statically or dynamically checks.
The measuring components are realized with the most recent Marposs measuring transmissions belonging to the AMA line (made in non-magnetic stainless steel) and with Red Crown pencil probes.
Its bracketry and guarding are manufactured using Laser Cutting technology, which can be easily integrated with CAD systems.
Thanks to its efficient design, different shaft geometries can be measured; furthermore, the preparation time and cost are minimized.
This new M67 bench replaces the Marposs Vertical Quick Set bench when no retooling operation is needed.
