Description

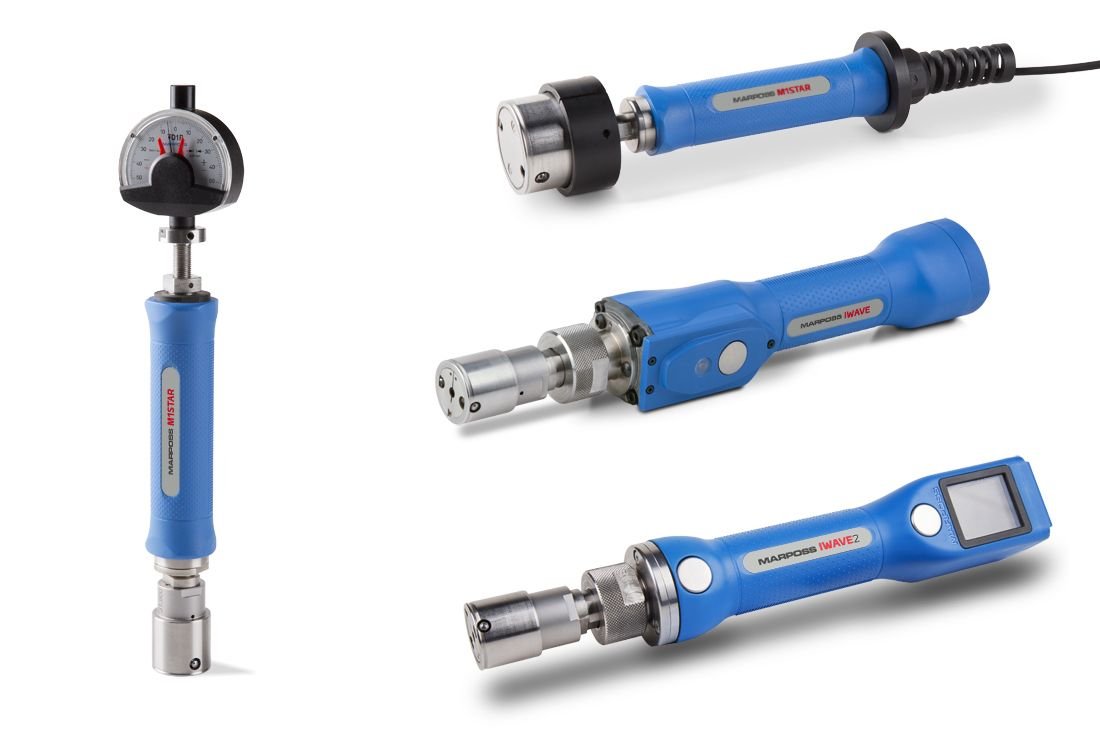

The Marposs M1Star variable gauge is composed by an interchangeable gauge head, the measuring element of the instrument, and by a handle, which controls the signal conversion and transmission. The M1Star can be equipped with either a mechanical transmission gauge head (MBG) or with an electronic transduction gauge head (EBG).
The Marposs MBG gauge head is an extremely versatile solution that may also gauge deep or interrupted bores. The mechanical transmission measuring system provides both excellent metrological performance (repeatability <1 micron) and the lowest price range. The chance to configure and interchange a wide range of accessories makes this gauge head universally applicable. The measuring cell is composed, depending on the diameter, by either two or eight fulcrum elements. The measurement is transduced to the display device by a transfer rod with a spherical head that slides on a cradle formed of a V shaped guide and an inclined plane.
The Marposs EBG gauge head is the most advanced solution on the market for variables manual gauging. The gauging system includes an electronic differential LVDT or HBT transducer that transforms the measurement into an electronic signal. The system is completely free of friction and guarantees a repeatability of less than 0.5 microns, constant over the entire field of application.
