HSD-AECONV - High Speed Digital Air to Electronic Converter

Description

The pneumoelectronic Marposs HSD-AECONV is the result of a meticulous engineering study to provide a completely digitized device, where the main advantages are:

• Absence of linearity error on total working field
• Very fast reaction time
• Can be connected to Marposs electronic unit & third-party with digital signal

Its characteristics allow its connection to any pneumatic measure device typologies, which are characterized by a wide variety of air nozzle and gap distance from nozzle and part to be inspected

• Pneumatic air plug
• Pneumatic air ring
• Pneumatic air plig and ring for taper HSK and ISO
• Pneumatic snap
• Manual and automatic measuring bench

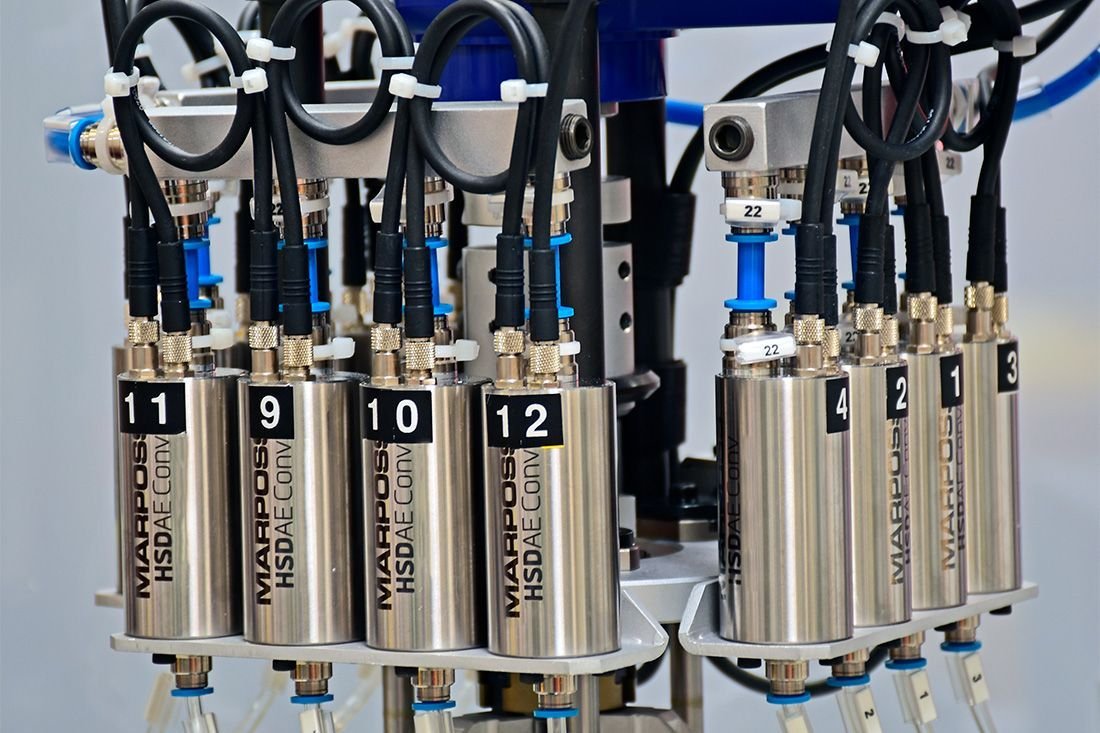

The HSD-AECONV pneumoelectronic converter can be supplied singleXwith multiple units. They can be connected together by chain up to a volume of 15Xeven more, and then have a single cable that reaches the measurement electronics. Consequently, it finds a perfect solution even in application complexes characterized by a high number of measurement points.

Each HSD-AECONV pneumatic converter is able to manage a pneumatic measuring channel.

It is designed to be used in any workshop environment and it finds perfect applicability in in-process and post-process processing.

HSD-Aeconv, can be connected:

• Marposs electronics, such as E9066, Merlin, Blù, Duo;

• directly to the customer’s CN via Field Bus, such as USB, RS485, Ethernet, EtherCat, Profinet, and so on
