Description

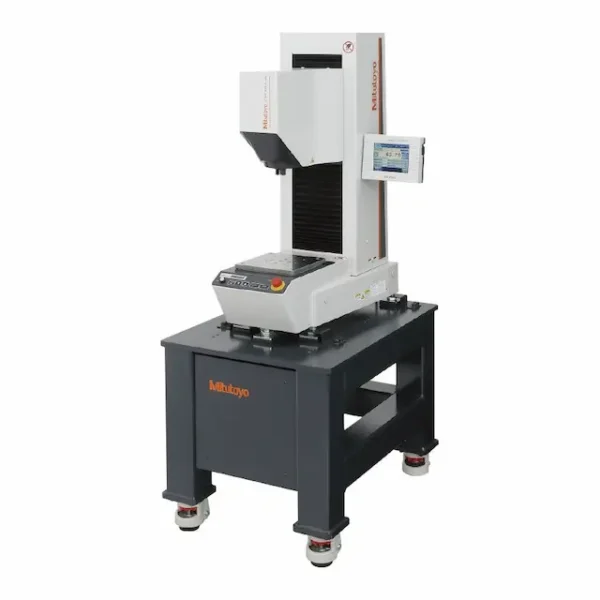

The HR-600 Series combines the functionality of two previous models: one for Rockwell hardness testing and the other for Brinell hardness testing. Supporting both test types on a single machine, this new series expands the range of available measurements.
HR-610A
Standard Rockwell hardness testing machine model with moving head
| Maximum table loading | 100 kg |
| Maximum workpiece height | 250 mm |
| Depth (from indenter center) | 220 mm |
| Test force | 29.42 – 1839 N (3 – 187.5 kgf) |
HR-620A
Rockwell hardness testing machine with high added value that can measure micro-Brinell hardness and the hardness of plastics
| Maximum table loading | 100 kg |
| Maximum workpiece height | 250 mm |
| Depth (from indenter center) | 220 mm |
| Test force | 9.807 – 2452 N (1 – 250 kgf) |
HR-620B
Fully automatic multi-point Rockwell hardness testing machine with Y-axis stage mobility that can measure micro-Brinell hardness and the hardness of plastics, and also supports multi-point inspection
| Maximum table loading | 100 kg |
| Maximum workpiece height | 250 mm (with X-axis stage: 165 mm) |
| Depth (from indenter center) | 220 mm |
| Test force | 9.807 – 2452 N (1 – 250 kgf) |
HR-620B (PC Type)
The PC TYPE model allows users to view measurement data on large-screen PC monitors. Other features are the same as HR-620B.
| Maximum table loading | 100 kg |
| Maximum workpiece height | 250 mm (with X-axis stage: 165 mm) |
| Depth (from indenter center) | 220 mm |
| Test force | 9.807 – 2452 N (1 – 250 kgf) |
