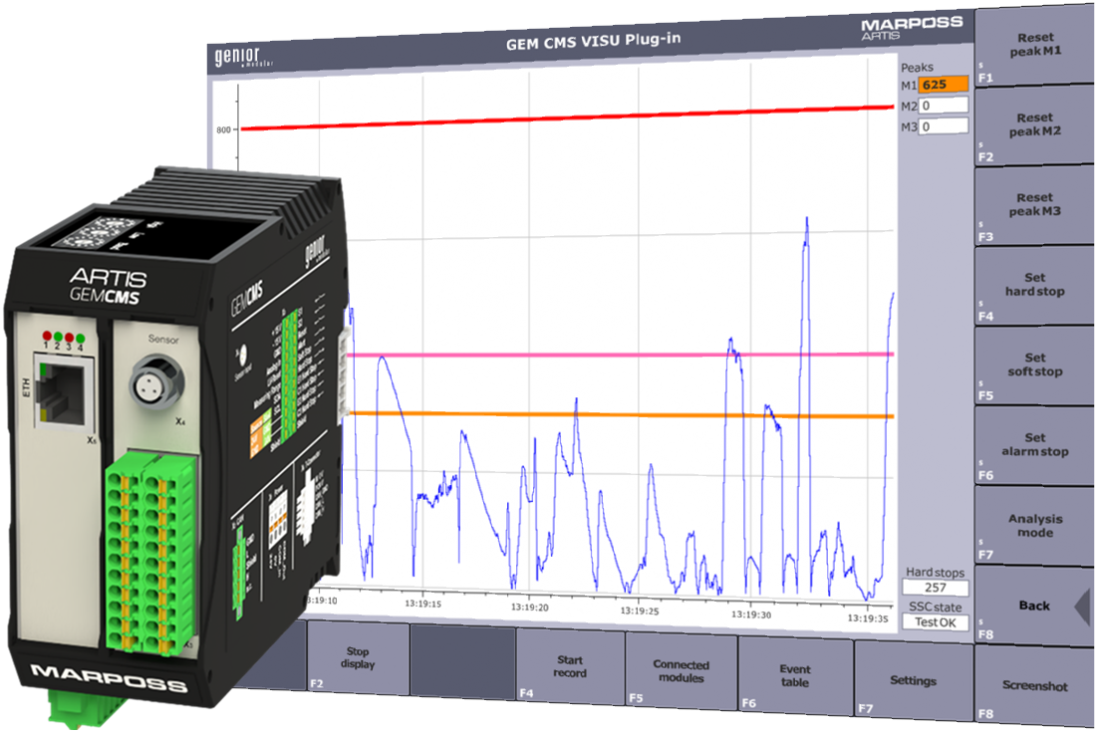

GEMCMS - Collision Damage Avoidance

GEMCMS is a highly effective tool for minimizing collision damage. GEMCMS reduces the crash detection time to less than 1 millisecond.
Valuable time is gained, the stop command will be executed much quicker.

A special sensor detects slightest µ-range deformations inside the structure of the machine which are caused by the forces acting upon the spindle resp. axes.
Thanks to this way of measurement, GEMCMS not only detects hard hits but also non-impact collisions at lower speed, depending on system adjustments.

GEMCMS provides 3 different operation modes with 3 different static limits per mode for warning, soft stop and hard stop.
All events trespassing pre-fixed hard stop limits are recorded in a log-file for later analysis (collision table). Critical process sequences can be recorded and analyzed in detail afterwards.

GEMCMS can be used in stand-alone mode with operating software running in Windows (Win 7/10) based controls resp. on Siemens Linux systems (TCU).
In case of non-Windows controls the operating software can be installed on Marposs 7”/10” terminal units or on any PC (Win 7/10).
In addition Marposs provides a fully independent solution with a 4.3” operating unit and user interface following the look & feel of the predecessor model, which has been installed around 10.000 times.

As a part of the GENIOR MODULAR product family, GEMCMS can be built up to or integrated into the GENIOR MODULAR monitoring systems for process monitoring purposes, delivering the strain data to the processing unit.

Thus, Marposs offers an extremely flexible solution, which can be adapted to changing needs by adding any GENIOR modules (Operation with GENIOR MODULAR: Interface CAN bus).

For large machine applications with demand for longer cable length an external pre-amplifier is available.
