Description
The DS7000 automatic balancing system allows for a quick and precise compensation with balancing heads, installed internally or externally on the spindle, fitted with electromechanical weights with contactless transmission.
The new deterministic balancing algorithm provides a huge improvement of the balancing process on two planes, with a reduction of the cycle time.
The electronic unit controls the motors of the balancing heads directly both in the static position with the spindle stopped and with the spindle rotating. In this way the weights are moved in defined positions to correct the imbalance.
The DS7000 system consists of multi-function modules, which cannot be connected together, used as mainframe for the cabinet. The following modules are available:

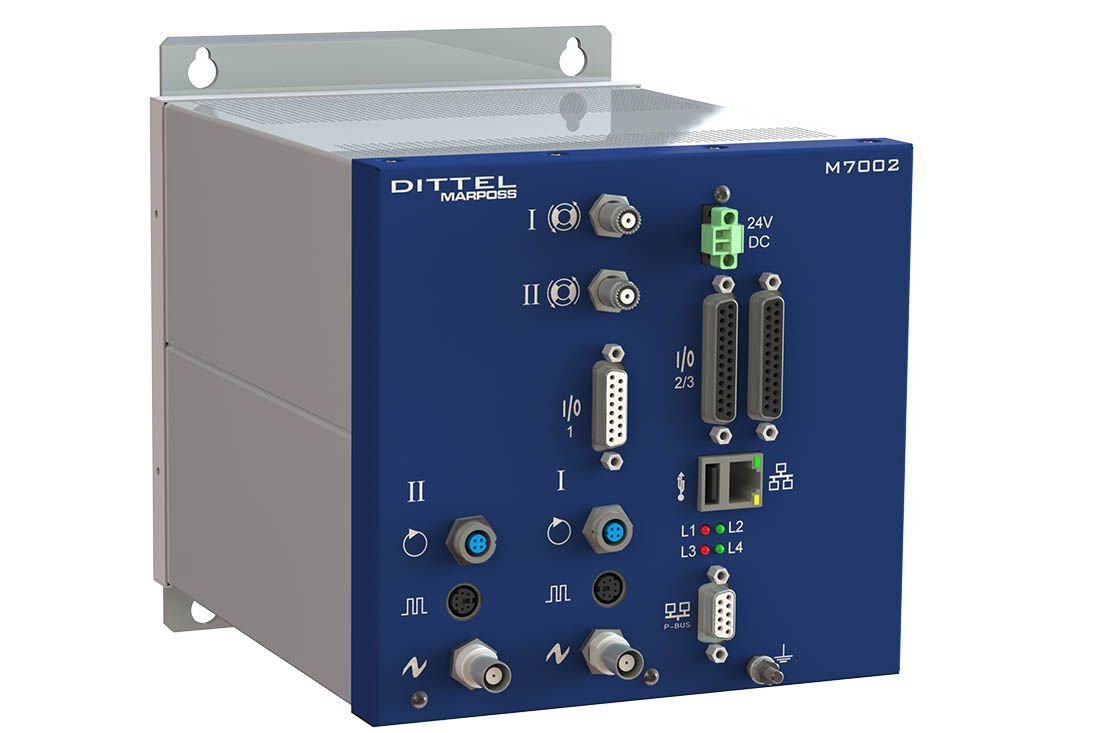

- M7002: balancing on two planes with a deterministic algorithm
- MA7002: as well as the balancing it features the built-in process check with the AE (Acoustic Emission) sensors
All the programming, display and operating phases of the electronic unit are performed with a PC built-in to the CNC machine tool or an external PC, with Windows or Linux operating system and the new USCC (Unified System Control Center) software package.
The PROFIBUS interface and the connection with the digital I/O signal are available to control the machine.
The display with the PC is performed with an Ethernet connection. Furthermore a USB port can be used to manage various applications.
