Description

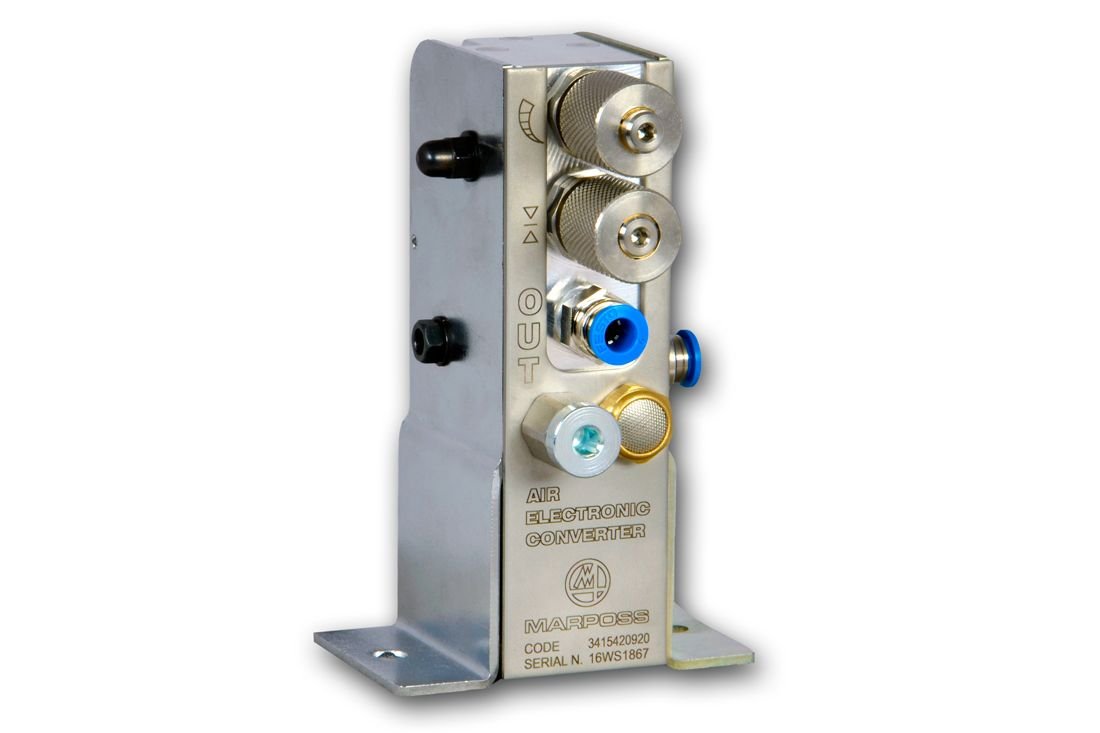

Marposs Air Electronic Converter is characterized by a high flexibility of use, making it perfectly adaptable to the most different customer application needs.
- Zero regulation through regulator on the front panel
- Pneumatic sensitivity through regulator on the front panel
The flexibility allows it to be connected to any pneumatic measure device typologies, which are characterized by a wide variety of air nozzle and gap distance from nozzle and part to be inspected
- Pneumatic air plug
- Pneumatic air ring
- Pneumatic air plug and ring for taper HSK e ISO
- Pneumatic snap
- Manual and automatic measuring bench
The Marposs Air Electronic Converter can be supplied as a singleXmodular assembly, from 2 to 6 units.
It is engeneered to be used on all workshop environments. It is perfect for the inspection on mechanical grinding post and in-process.
Each Air Electronic Converter is able to handle one air measure channel.
Air Electronic Converter versions that can be provided are characterized by a wide range of electrical signals:
- LVDT
- MRT
- HBT
- Current Loop 4-20mA
- Voltage +/-10V
- Digital
