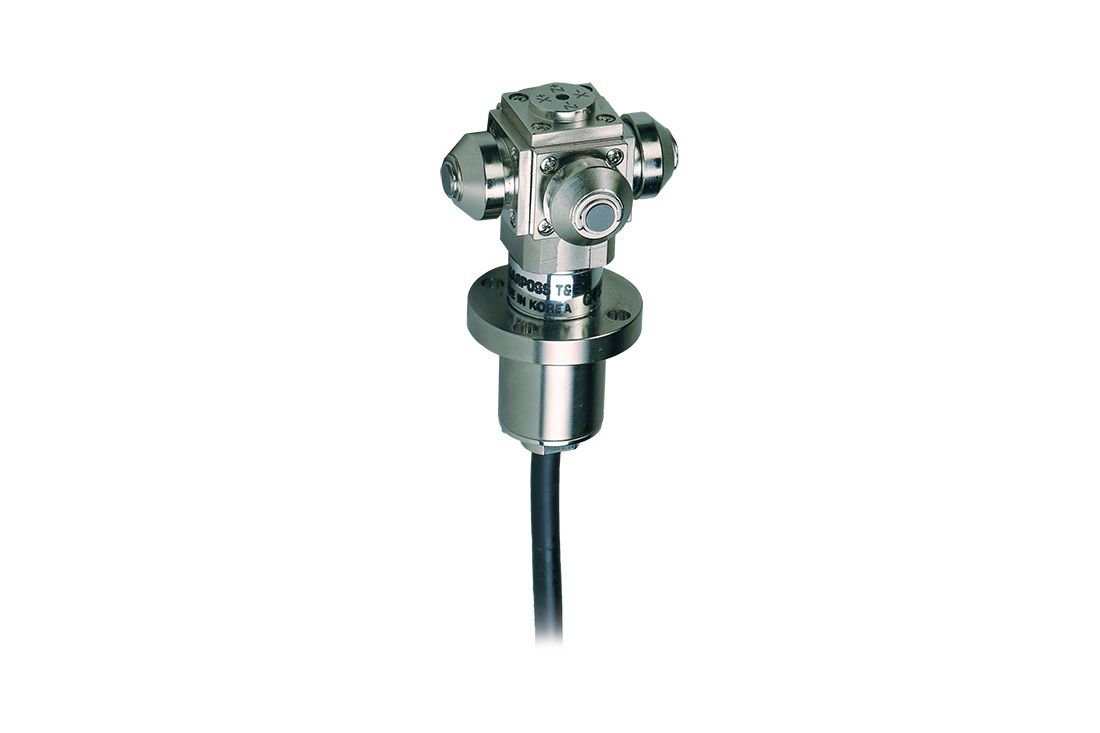

A90K - Probes for Tool Checks on Lathes

Description

The A90K probe line represents a complete range of compact applications based on the following, easy to understand operating principle: At the instant the tool cutting edge comes into contact with the probe, the system generates a highly repeatability signal, which is transmitted to the CNC. The tool measurement, which is generated by processing the signal, is compared with the nominal value that has already been saved in the CNC, in order to determine tool wear and breakage.

All the check and measurement operations are performed during a single phase, which offers the dual advantage of reducing production times and eliminating the risk of damage to the machine resulting from human errors when setting up the tool parameters.

The probes are used for the following checks:

• Tool breakage, in order avoid the risk of damaging the work piece and the machine, and the resulting loss of production time
• Tool length
• Tool wear compensation, in order to optimise working life
• Tool offset calculations, in order to reduce set-up times and eliminate the need to pre-set the tool outside the machine
